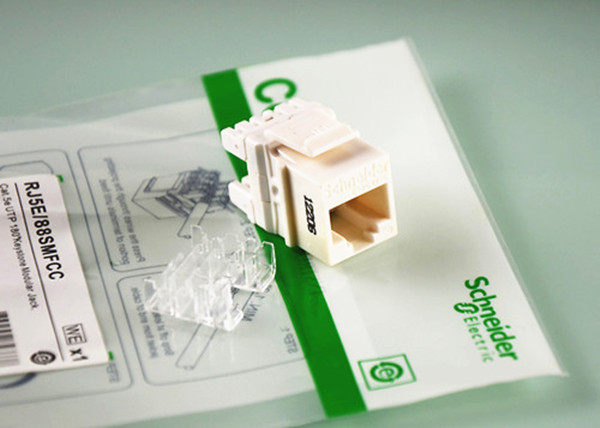

Product Name: Schneider Super Category 5 Network Module

The original design of the schneider global brand is based on strict green design requirements;
this product is designed by schneider, its unique design is designed for many other brands;
product performance meets TIA/EIA standards, up to five standards;

The product stylus uses true 50GP gold plating and will not oxidize for a long time;

Unique peak-shaped cloth needle with high reliability.

Technical indicators:
1, DC resistance: ≤ 300mΩ;
2, contact
resistance: ≤ 20mΩ; 3, compressive strength: 1000V (AC750V) 1min without breakdown and arcing;
4, insulation resistance: ≥ 1000mΩ;
5, gold needle: phosphorus Bronze, gold-plated;
6, IDC terminal: phosphor bronze, card 22-26AWG conductor;
7, plug and socket insertion times ≥ 750 times;
8, storage temperature: -40 ° C ~ 70 ° C;
9, installation temperature: - 10 ° C ~ 60 ° C;
10, working temperature: -10 ° C ~ 60 ° C;
